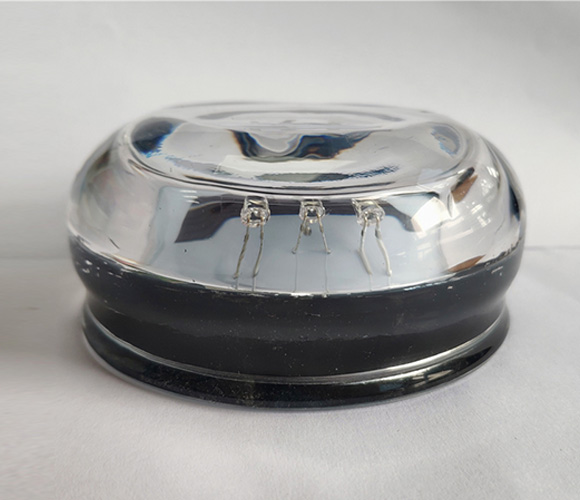

Embedded road stud NK-RS-A8

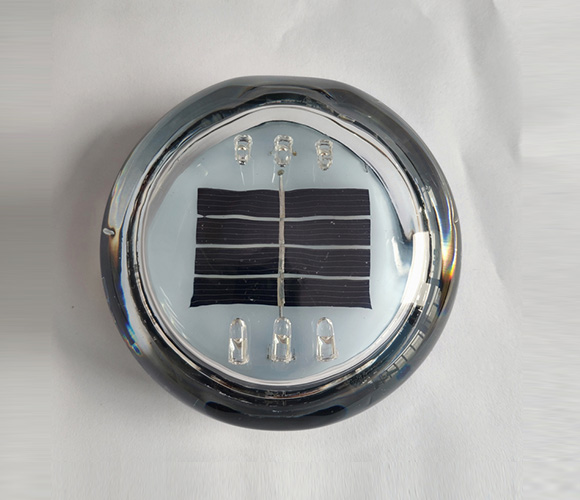

Embedded road stud NK-RS-A8

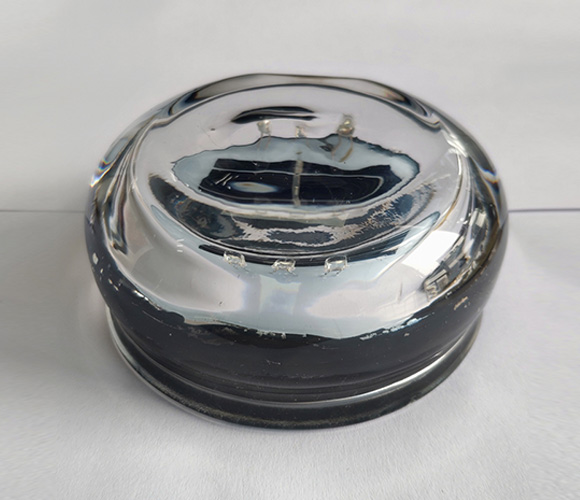

Embedded road stud NK-RS-A8

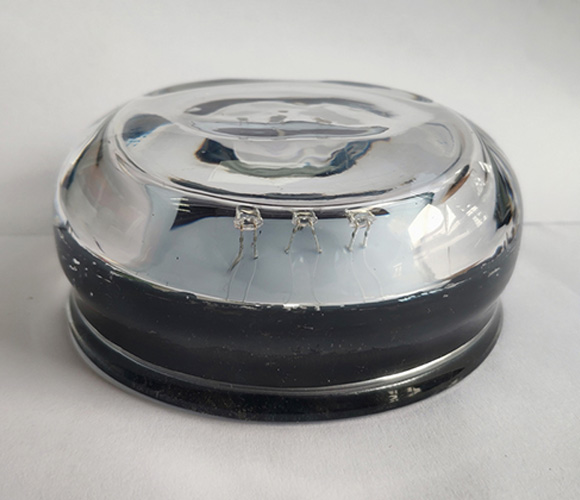

Embedded solar road stud NK-RS-A8

Body material: Tempering glass
Visual distance: Solar panel(mono crystalline 2.5V/0.2W)
Size: Dia108mm*H60mm
LED color :
Load Capacity: >20T
Introduction
Specification
Application
Inquiry
Description:


Solar road reflectors easy installation. No external power or paved circuit is needed, firmly installed by epoxy resin glue or screws. Energy saving. Low power consumption and solar energy. Excellent warning effect. All LEDs of solar led road studs can perform more soundly in active lighting and high brightness. Firm and durable. Use the mold to press the outer covering at a time, which needs no more assembly as to improve the compression resistance. Long working-time. 180 hours for flashing, 40 hours for steady in fog or rainy days after fully charged. Designed by integrated circuit and thermostability rechargeable batteries . Ensure the long servicing life and performance of the product.

Working Principle of Solar Road Stud Light:

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver's sight. Solar road studs will starts automatically to flash when night falls or with the onset of inclement weather .The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.


Installation Method Of Embedded Solar Road Stud:
  • Carefully mark distance between placement of solar road stud lights.To prevent an adverse effect on ground,use a proper tool such as Core Drill.Drill Φ108mm and depth will be 50mm.
  • Remove all debris from installation hole.
  • Pour epoxy into the holes per manufacturer's instruction.
  • Verity that the installation hole is straight.Verity that the installation hole is large enough to allow epoxy to surround the solar led road stud shaft.
  • Set the lighting surface of the solar road stud to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and solar marker shaft.
  • After curing the LED solar road stud for 6-8 hours, remove the installation of the isolation facility.


The recommended spacing between each solar road studs are as follows:

Highways and Expressways
7 - 8 yards (5 - 6 meters)
Dangerous Entrances and Exits
4 - 5 yards (2 - 3 meters)
Access or Exit ways for Hospitals, Parking Lots, etc.
0.5 - 3 yards (0.5 - 2 meters)

The spacing between of each solar studs also according to your actual application requirements, the above values are for reference only.



Embedded solar road stud NK-RS-A8
Characteristic:
  • Easy installation, no maintenance
  • Saves power, no additional expenses, environmentally friendly, no pollution
  • Solar energy-based power source
  • Brightness sensitive auto-switch, automatically turns on at night and turns off at dawn
Specification :
Body material Tempering glass
Power supply Solar panel(monocrystalline 2.5V/0.2W)
Battery NI-MH 1.2V/800MAH
LED Ultra bright diameter 5mm; 6pcs(double side)
LED color Red,Yellow,Green,Blue,White
working mode Blinking or constant(flashing frequency 2Hz, also can be made according to your requirements)
Visual distance >800m
Water proof IP68
Life span >3years
Load capacity >20T
Size Dia108mm*H60mm
