Concrete Drilling Machine
diamond core drills sale
heavy duty concrete drilling machine

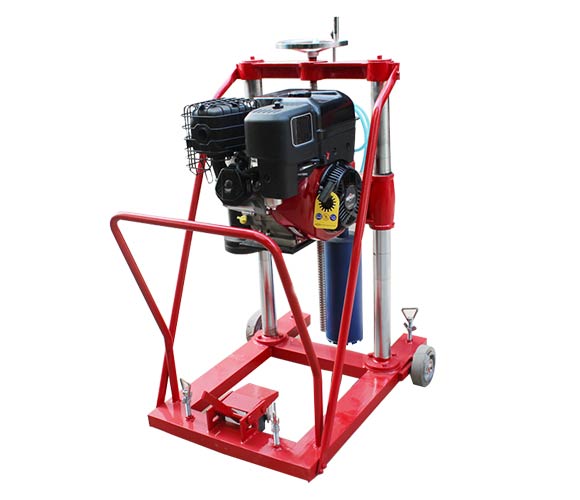

Core Drill Machine

The concrete core drill machine is used for horizontal drilling, suitable for road stud installation, road piles; hole coring machine installation, bridge drilling operating procedures, integrated house pile foundation drilling, etc., Core Drill Machine has been widely used in traffic engineering companies.
Engine: Gasoline with HONDA brand
Power: 13HP
Rotating Speed 800-1200times
Hole size(biggest): Dia200*700mm
Introduction
Specification
Application
Inquiry
Description:
The core drill machine is high quality ,operation is very simple and can save the installation time, and increasing the working efficiency.

The core drilling machine used for pavement drilling is powered by a gasoline engine. the core drilling machine has a beautiful appearance, strong and durable, easy to start, reliable in operation, and easy to operate. NOKIN core drilling machine is equipped with artificial diamond thin wall drills on the market, suitable for drilling concrete, cement, and asphalt roads. , Rocks and many other substances. The maximum drilling core diameter of the machine: ∮200mm The maximum drilling core depth: 700mm Power: 13 horsepower.

Core-drill-machine application

Precautions for concrete drilling and coring machine:
1. When the concrete drilling core machine is drilling, the feed rate should be uniform, about 3~5cm/min. If the drill bit is jammed, the feed rate can be appropriately reduced, and the drill bit can be raised for a period of time if necessary. , And then slowly drill in, avoid hard drilling, so as not to damage the drill bit and the machine.
2. Adequate water cooling must be maintained during the entire drilling process.
3. During the drilling process, do not overload. When the motor temperature exceeds 70°C (feeling hot to the hand), reduce the loading force and replace the drill bit with a new one.
4. At the end of drilling, the machine can be stopped only when the drill is separated from the workpiece.

The concrete core drill machine is used for horizontal drilling, suitable for road stud installation, road piles; hole coring machine installation, bridge drilling operating procedures, integrated house pile foundation drilling, etc., Core Drill Machine has been widely used in traffic engineering companies.



Core Drill Machine
Characteristic:

--The NOKIN core drilling machine is powered by an original (Honda) gasoline engine, which can start quickly

--Equipped with thin-walled diamond drill bits, suitable for concrete and asphalt roads such as highways, airports, ports, dams, etc.

--Can be used for bending and compressive tests on various roads.

--Drilling core diameter: Φ200mm; Depth of drilling core: 700mm

--Spindle speed: 800-1200

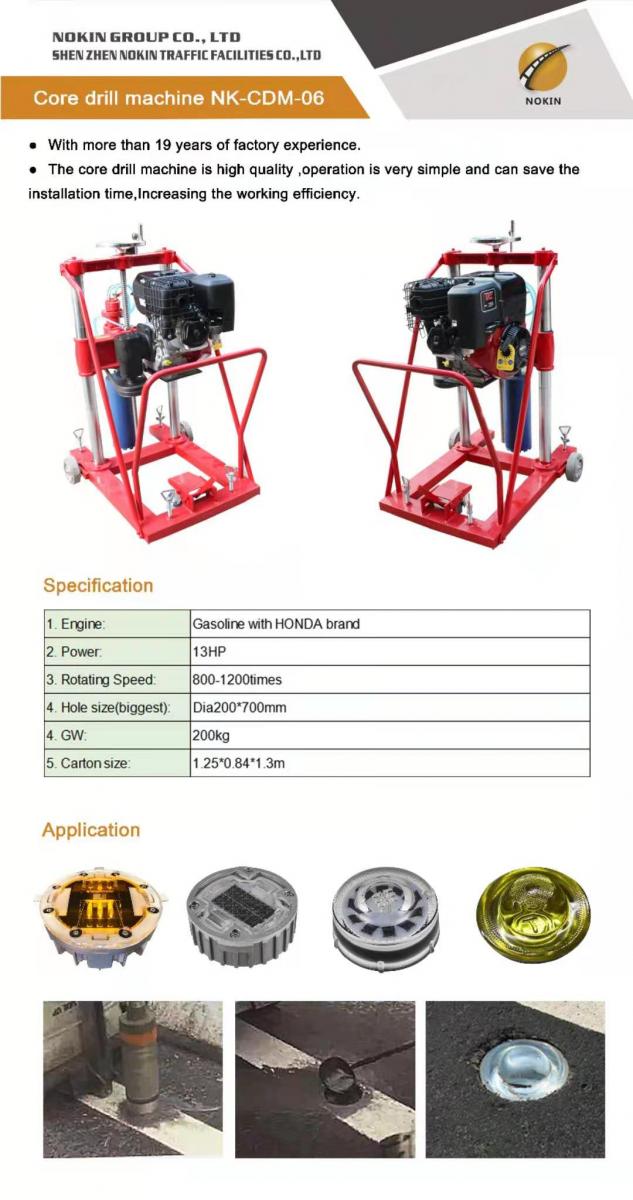

Specification :
Engine: Gasoline with HONDA brand
Power: 13HP
Rotating Speed: 800-1200times
Hole size(biggest): Dia200*700mm
GW: 200kg
Carton size: 1.25*0.84*1.3m
