How to Make a Traffic Cone Heavier: 2025 Expert Guide

As a fundamental tool for road safety and site management, the weight of traffic cones is by no means a simple choice of "the lighter, the better" or "the heavier, the more stable". In practical use, weight is directly related to safety effectiveness, compliance and operational efficiency. Ignoring weight compatibility may cause a series of problems.


The safety and compliance risks caused by the overturning of traffic cones and the order to rectify substandard cones by regulatory authorities mostly stem from the neglect of the "weight of traffic cones". In strong winds on expressways, light cones weighing 1-1.5lbs may be overturned by air currents. At construction sites, cones that do not meet the OSHA minimum standard of 2.75lbs not only fail to provide protection but also slow down the project progress. Conversely, although 10-12lbs heavy cones can withstand winds of up to level 8 and high-speed traffic, their difficulty in transportation greatly reduces the efficiency of temporary event arrangements.


This contradiction between the "stability requirement" and the "practical efficiency" makes "how to make the traffic cone heavier" the key point - it is necessary to meet the requirements of specific scenarios by increasing the weight, while avoiding excessive weight that may cause operational inconvenience.

Regulations and Standards for the Weight of Traffic Cones

The regulations on the weight of traffic cones vary among different countries and regions, especially in road and construction site scenarios. It is necessary to strictly follow local standards to avoid compliance risks.


The United States: Multi-Level Norms from the Federal Level to the State Level

The requirements for the weight of traffic cones in the United States present a feature of "federal framework + state-level refinement", with the core basis including the following three types of standards:


State Transportation Department: Exclusive requirements for expressways

The departments of transportation in each state of the United States have a clear lower limit on the weight of cones used on highways. Take California as an example. It is stipulated that for highway traffic cones that are 28 inches or larger (including 28 inches), the weight must be no less than 7lbs. For a 36-inch cone, the weight should be no less than 10lbs, and the diameter of the base must not be less than 14 inches to ensure even weight distribution and enhance wind resistance.


OSHA: The safety bottom line for construction sites and workplaces

OSHA mainly formulates standards for non-road scenarios, such as construction sites and factory areas. Its "Building Safety Standard" (29 CFR 1926) clearly stipulates that traffic cones used to demarcate construction areas and passageways should weigh no less than 2.75lbs and be equipped with reflective strips (with a visible distance of no less than 500 feet at night).


MUTCD: The "Universal Guideline" for unified traffic control

The Uniform Traffic Control Facilities Manual (MUTCD) is the "general specification" for traffic cones in the United States, covering scenarios such as roads, parking lots, and temporary events. The update content of its 2009 version is clear:

• Indoor or low-traffic areas (such as community roads) : The cone weight can be ≥1lbs;
• Medium-traffic roads (such as urban main roads) : The cone weight should be ≥3lbs;
• High-traffic or high-speed areas: The cone weight should be ≥7lbs and the height ≥28 inches.

Europe: The "Base Weight Priority" Principle of EN 13422

All traffic cones within the European Union must comply with the EN 13422 standard. The core difference between this standard and the US specification lies in "prioritizing the weight of the base" rather than the overall weight.

Requirements of EN 13422:

The base material should be rubber or high-density PVC (density ≥1.2g/cm³).

• 12-18 inch cones: Base weight ≥1.5kg (approximately 3.3lbs);
• 28-36 inch cones: Base weight ≥4kg (approximately 8.8lbs);

The connection strength between the base and the cone must pass the "10m/s wind speed test" (i.e., no toppling at a wind speed of 36km/h).


In addition, some EU countries (such as Germany and France) will further refine EN 13422. For instance, Germany requires that the overall weight of the cones used on highways be no less than 12lbs, and the base must have anti-slip patterns to prevent sliding in rainy days.

How to Determine the Weight Requirement for Traffic Cones?

Before choosing or adjusting the weight of traffic cones, a comprehensive judgment should be made from three dimensions: "scene characteristics", "service life", and "transportation conditions" to avoid problems such as "too heavy and inefficient" or "too light and unsafe".


Divide the Weight Requirements by "Usage Scenarios"

The "environmental complexity" of the scene directly determines the traffic cone weight. The core is to distinguish between "indoor vs. outdoor" and "low-risk vs. high-risk" :

Indoor scene

For indoor scenarios (such as the division of goods areas in warehouses, temporary promotional fences in shopping malls, and event guidance in gymnasiums), where there is no wind interference and the flow of people and vehicles is relatively low, it is recommended to choose 12-inch cones with a capacity of 1-1.5lbs.


For instance, in e-commerce warehouses, 12-inch cones with a capacity of 1.2lbs are used to divide the "picking area" from the "aisle". A single person can carry 30 items at a time, and the stacking height is no more than 1.2 meters, which does not occupy too much storage space.


Outdoor low-risk scenarios

In outdoor low-risk scenarios (such as community road maintenance, temporary traffic restrictions around schools, and parking lot zoning), where the flow of people is moderate and there is an occasional gentle breeze, it is recommended to choose an 18-inch cone with a capacity of 2.75-3 LBS.


Take the area around the school as an example. During the peak hours of going to and from school, there is a large flow of people, but the vehicle speed is no more than 20km/h. The 3-LBS 18-inch cones can not only withstand the daily gentle breeze but also be quickly deployed by two security personnel (moving 10 at a time and completing the enclosure of a 100-meter section within 10 minutes).


Outdoor high-risk scenarios

In outdoor high-risk scenarios (such as highway construction, coastal roads, and bridge maintenance), where strong winds and high-speed traffic flow are required, a 28-36 inch cone with a capacity of 7-12 LBS must be selected.


For instance, in the maintenance operations of coastal expressways in our country (such as the Shenhai Expressway), 36-inch cones with a capacity of 10lbs are often used, along with reflective strips and warning lights, to ensure that they do not tip over under strong winds of force 8 (wind speed ≥17.2m/s) and high-speed traffic (speed ≥100km/h).


Judge the Weight Compatibility Based on the "Service Life"

The service life of traffic cones (temporary vs. long-term) will affect the "balance between weight and cost" :

Temporary use

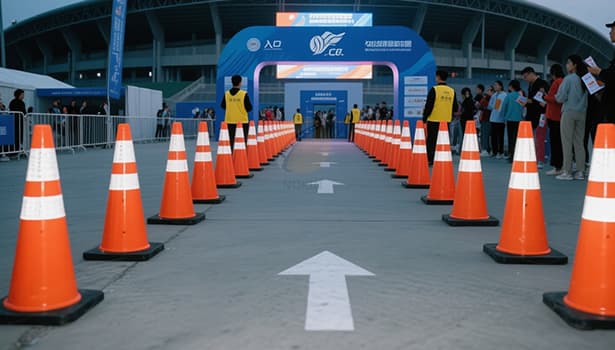

Temporary events (such as marathon track guidance and temporary auto shows) have a short usage period and do not require long-term stability. It is recommended to use light cones with a capacity of 1-3 LBS, combined with temporary counterweights like sandbags.


For instance, in a marathon event, a 12-inch cone with a capacity of 1.5lbs is used to divide the track. Around the base of each cone, a small sandbag weighing 0.5kg is placed (the total cost is low, the sandbags can be recycled after the race, and the cones can be reused).


Long-term use

For long-term projects (such as road renovation and subway construction) that require long-term stability, it is recommended to directly choose a 7-12lbs heavy cone or a cone with a built-in weighted base (such as a 28-inch cone with a 3kg rubber block integrated in the base).


Although the initial procurement cost of this type of cone is relatively high (about 2 to 3 times that of a light cone), its service life can reach over 5 years (the lifespan of a light cone is approximately 2 years), making it more cost-effective in the long run.


Refer to the "Scene - Weight" Correspondence Table

To simplify the selection process, you can refer to the following "Traffic Cone Scenario - Weight Correspondence Table" and make minor adjustments based on actual needs.



3 Methods to Make Traffic Cones Heavier

If the weight of the existing traffic safety cones is insufficient or needs to be flexibly adjusted according to the scenario, the problem can be solved through three methods: "dedicated counterweight blocks", "sandbags", and "cones with built-in weighted bases", covering both temporary emergency needs and long-term usage requirements.


Use Dedicated Traffic Cone Counterweights

The dedicated counterweight block is a "convenient and compliant" way to increase weight, suitable for scenarios that require frequent adjustments (such as construction sites that change construction areas every week).


Key points for selection: material, size, and compatibility

• Material priority should be given to "recycled rubber" : Recycled rubber counterweights have a high density (≥1.4g/cm³), are resistant to aging (service life ≥3 years), and have uniform weight, which will not deform due to temperature changes (-30℃ to 60℃). Secondly, high-density PVC can be chosen (it has a lower cost but slightly poorer weather resistance).
• The size should match the diameter of the cone bottom: The counterweight blocks are mostly "ring-shaped", and their inner diameters should be consistent with the diameter of the cone bottom (for example, the diameter of a 12-inch cone bottom is approximately 10 inches, so a counterweight block with an inner diameter of 10 inches should be selected) to prevent slipping. The weight can be selected as 2lbs, 3lbs, or 5lbs. It can be stacked as needed (up to 2 can be stacked to avoid damaging the cone due to excessive pressure).
• Ensure compliance certification: Give priority to choosing counterweights that have passed OSHA or EN 13422 certification, ensuring that the materials are environmentally friendly (free of heavy metals) and the weight error is ≤5% (for example, for a counterweight marked as 5lbs, the actual weight should be between 4.75 and 5.25lbs).

Operation steps

Clean the bottom of the cone and the ground: Ensure that there are no debris (such as soil or stones) at the bottom of the cone, and the ground is flat to prevent the counterweight blocks from tilting after installation.


Insert the counterweight block: Insert the annular counterweight block from the top of the cone and slowly slide it down to the base position, ensuring that the counterweight block is completely in contact with the base (without any gap).


Check stability: After installation, gently push the cone (with a force of about 5kg). If there is no obvious shaking of the cone, the installation is complete. If it still shakes, one counterweight block of the same size can be stacked (but it should be noted that the total weight does not exceed the upper limit of the cone's load-bearing capacity. Generally, the maximum load-bearing capacity of a 28-inch cone is ≤15lbs).


With the Help of Sandbags

Sandbags are a "temporary and low-cost" weighted solution, suitable for sudden scenarios (such as road waterlogging warnings after heavy rain and temporary repairs), but attention should be paid to "fixation and protection".


Selection and placement methods of sandbags

• Sandbag specifications: Prefer "waterproof canvas sandbags" (approximately 20cm×30cm in size, weighing about 3-5 LBS when filled with sand), and avoid using ordinary woven bags (prone to sand leakage and not resistant to rain).
• Placement position: Evenly arrange around the bottom of the cone. Generally, 1 cone is paired with 2 to 4 sandbags (adjusted according to the weight of the cone). For example, a 12-inch cone with 1.5lbs is paired with 2 sandbags of 3lbs, placed on both sides of the bottom of the cone (at an Angle of 180°).
• Stacking height: The stacking height of sandbags should be no more than 15cm. Avoid blocking the reflective strips on the cone (the reflective strips should be exposed at least two-thirds of the height to ensure visibility at night).

Avoid "aggravating and adding hidden dangers"

Sandbags need to be fixed: If the scene is windy (such as a bridge), a small stone slab (weight ≤2lbs) can be placed on the sandbag, or the sandbag can be tightly tied to the bottom of the cone with a rope (reflective rope should be selected to avoid tripping pedestrians).


Rainy days require inspection: Although canvas sandbags are waterproof, they may gain weight if soaked for a long time (more than 24 hours), so regular inspections (once every 12 hours) are necessary. If the weight of the sandbag exceeds 5lbs, some sand can be poured out to prevent the cone from being crushed.


Timely recycling: After temporary use (such as emergency repairs), the sandbags should be emptied and dried to facilitate reuse. If the sandbags are damaged, they should be replaced in time to prevent the sand from scattering and polluting the environment.


Purchase the Traffic Cones with Built-in Weighted Bases Directly

If it needs to be used for a long time in high-risk scenarios (such as highways and coastal construction sites), directly purchasing a "traffic cone with a built-in weighted base" is the best solution. It requires no additional operation and has stronger stability.


Advantage of the built-in weighted base cone

• More uniform weight distribution: The base of this type of cone adopts an "integrated design" (for example, the base of a 36-inch cone integrates an 8lbs rubber block, and the base thickness is ≥2cm), with the weight concentrated at the bottom. Its wind resistance is over 30% higher than that of "ordinary cone + counterweight block".
• Stronger durability: The base material is mostly "nitrile rubber" (oil-resistant, weather-resistant, and anti-aging), and it will not crack even in a low temperature of -40 ℃ or a high temperature of 70℃. The conical part is made of high-density PE (polyethylene), which has strong impact resistance (it can return to its original shape after being slightly crushed by a vehicle of less than 1 ton).
• No worries about compliance: The built-in weighted base cones of mainstream brands have all been certified by standards such as OSHA, EN 13422, and China's GB/T 24725, and can be directly used in compliance scenarios such as roads and construction sites.

Purchase and usage suggestions

• Select the weight based on the scene: For highway construction, choose a 36-inch cone with a weight of 10-12 LBS. For the construction of main urban roads, 28-inch cones with a capacity of 7-10 LBS should be selected.
• Check the connection strength: When purchasing, you can test the "connection force between the base and the cone" - hold the top of the cone with both hands and lift it upwards. If the base is not loose (pulling force ≥50kg), the connection is qualified.
• Regular maintenance: Check the rubber of the base for aging every three months (if cracks appear, replace the base in time or replace the entire cone).

The "weight adjustment" of traffic safety cones does not mean "the heavier, the better", but rather "adaptation as needed" - it requires a comprehensive judgment based on three dimensions: the scenario (indoor/outdoor, temporary/long-term), regulations (OSHA, EN 13422, etc.), and practical operation (transportation, layout). Through scientific weight adjustment, traffic cones not only meet safety and compliance requirements but also enhance operational efficiency, truly becoming the "first line of defense for safety protection".
