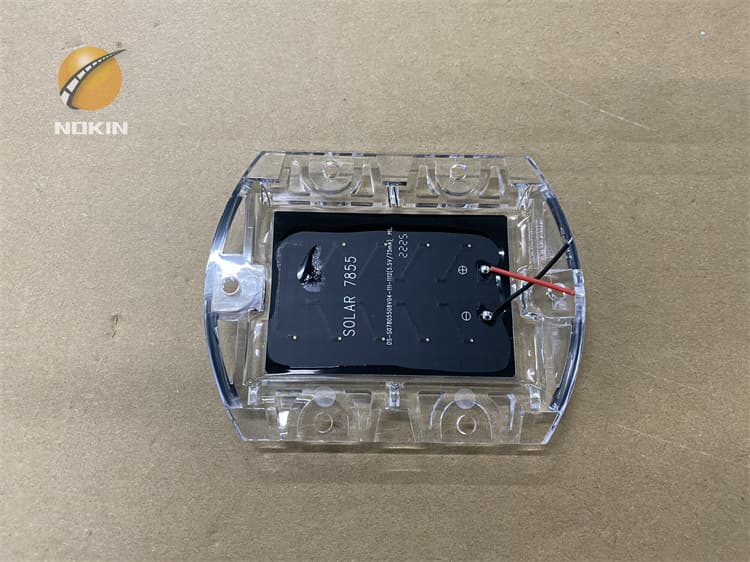

Ultra Thin Solar Led Road Stud for Road Safety

NOKIN LED Solar Road Stud is well received in Philippine Market, especially in Metro Manila, Davao City with a mostly advantaged price over any other China supplier or Philippine supplier. LED Solar road stud is a protruding sign. It’s self-luminous, supplied by solar panels. Generally used for paving roads, used at night or in the rain and foggy weather, and sketching the outline of the road, to improve road safety.

Share:
Content

Installation Method Of Raised Solar Road Stud:

Carefully mark the distance between the placement of solar road stud lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 35mm and the depth will be 55mm.
Remove all debris from the installation hole.
Pour epoxy into the holes per the manufacturer’s instruction.
Verify that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the solar-led road stud shaft.
Set the lighting surface of the solar road stud to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and solar marker shaft. Verify the bottom of the solar road marker is firmly installed on the installation surface allowing for zero surface float; to occur. (space between installation surface and bottom of the solar marker).
After curing the LED solar road stud for 6-8 hours, remove the installation of the isolation facility.
The recommended spacing between each solar road stud is as follows:
Highways and Expressways
7 – 8 yards (5 – 6 meters)
Dangerous Entrances and Exits
4 – 5 yards (2 – 3 meters)
Access or Exit ways for Hospitals, Parking Lots, etc.
0.5 – 3 yards (0.5 – 2 meters)
The spacing between each solar stud is also according to your actual application requirements, the above values are for reference only.
Ultra Thin Solar Led Road Stud for Road Safety
Ultra Thin Solar Led Road Stud for Road Safety

SPECIFICATIONS:

Body material PC
Power supply High efficient solar panel(5.5V/80mA)
Battery Lithium Iron Phosphate Battery(3.2V/500mAh)
LED Ultra-bright diameter 5mm( 6pcs)
LED color Red, Yellow, Green, Blue, White
working mode Recharging at day and working automatically at night
Flashing mode Blinking or constant

(charging in the daytime and working automatically at night)

Life Span 5years for Lithium battery;
Waterproof IP68
Visual distance >500m
Working temperature: -20°C-80°C
Load Capacity >15T
Size 114*90*11mm  (4.49″*3.54″*0.43″)
Package: 2pcs/box;100pcs/ctn;weight:14.5kg;carton size:48*27*21.5cm

(2pcs/box;100pcs/ctn;weight:31.97bs;carton size:18.90″*10.63″*8.46″)

Ultra Thin Solar Led Road Stud for Road Safety
Ultra Thin Solar Led Road Stud for Road Safety

NOKIN LED Solar Road Stud is well received in Philippine Market, especially in Metro Manila, Davao City with a mostly advantaged price over any other China supplier or Philippine supplier. LED Solar road stud is a protruding sign. It’s self-luminous, supplied by solar panels. Generally used for paving roads, used at night or in the rain and foggy weather, and sketching the outline of the road, to improve road safety.
